Sitar Simulation Framework¶

Sitar is a framework for modeling and parallel simulation of synchronous (clocked) discrete-event systems.

It combines a domain-specific modeling language with a lightweight C++ simulation kernel for deterministic and scalable parallel simulation of synchronous systems.

Target Applications¶

Sitar is ideally suited for modeling large and complex synchronous systems with a static interconnection structure, particularly in domains where system behavior is naturally expressed at discrete time-steps and where scalability and determinism in simulation are critical. Typical application areas include:

System-level and computer architecture research models, such as multi-core processors, memory hierarchies, interconnects, and on-chip networks, where components activate and interact using a global clock.
Computer and communication networks, including packet-switched networks and network-on-chip (NoC) models, where communication latency and buffering semantics are explicitly modeled.
Discrete-time queueing networks, where arrivals, services, and routing decisions occur at fixed time intervals and system state evolves synchronously across components.

Scalability and Performance

Using single-threaded simulation execution, Sitar’s performance is comparable to that of SystemC. When shared-memory parallel execution is enabled, speedups of up to 50× have been observed on a 40-core shared-memory system for large, compute-intensive models.

Core Idea¶

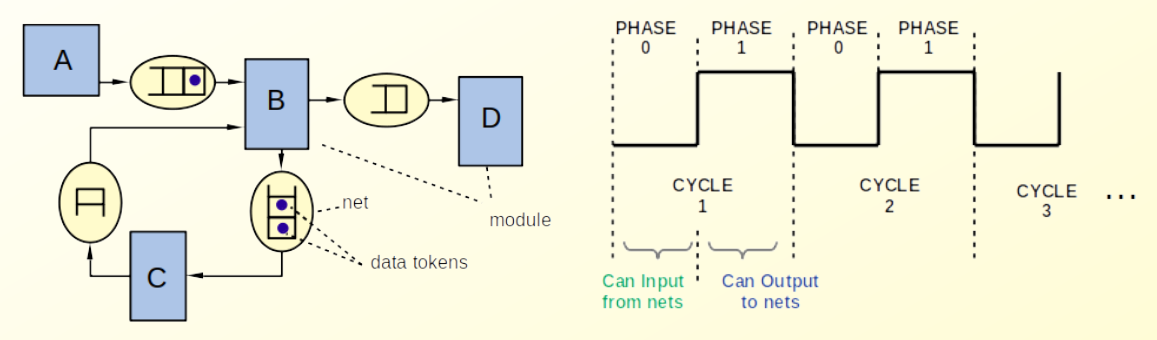

Sitar models a system as a collection of Modules that communicate via Nets (FIFO channels) and evolve in discrete logical time. Each simulation cycle is divided into two phases: a read phase, in which nets may only be read from, and a write phase, in which nets may only be written to. A net can have at-most one reader and at-most one writer. This restriction is key for enabling parallel race-free and deterministic execution. Simulation progresses by executing the behavior of every module once in each phase (that is, twice in a clock cycle). To enable parallel simulation, individual modules or groups of modules are mapped to separate execution threads that synchronize at the end of each phase.
The two-phase execution eliminates the need for explicit dependency analysis between modules in the system, allowing them to be executed in any sequence, or in parallel. A direct consequence of this design is that communication over nets incurs a minimum latency of one clock cycle, which is natural for target application domains such as computer architecture and system-level modeling. Zero-delay communication between components can still be modeled by grouping such closely-knit components within a single module and mapping them to a single execution thread.

Key Idea

In essence, parallelism is achieved by breaking up a large model along nets that have non-zero latencies, and mapping the chunks to separate execution threads (that run in parallel, and synchronize at the end of each phase).

By restricting the modeling scope to this class of systems, Sitar enables a simple and efficient simulation algorithm that scales well with model size, while remaining expressive enough for writing very large, complex models.

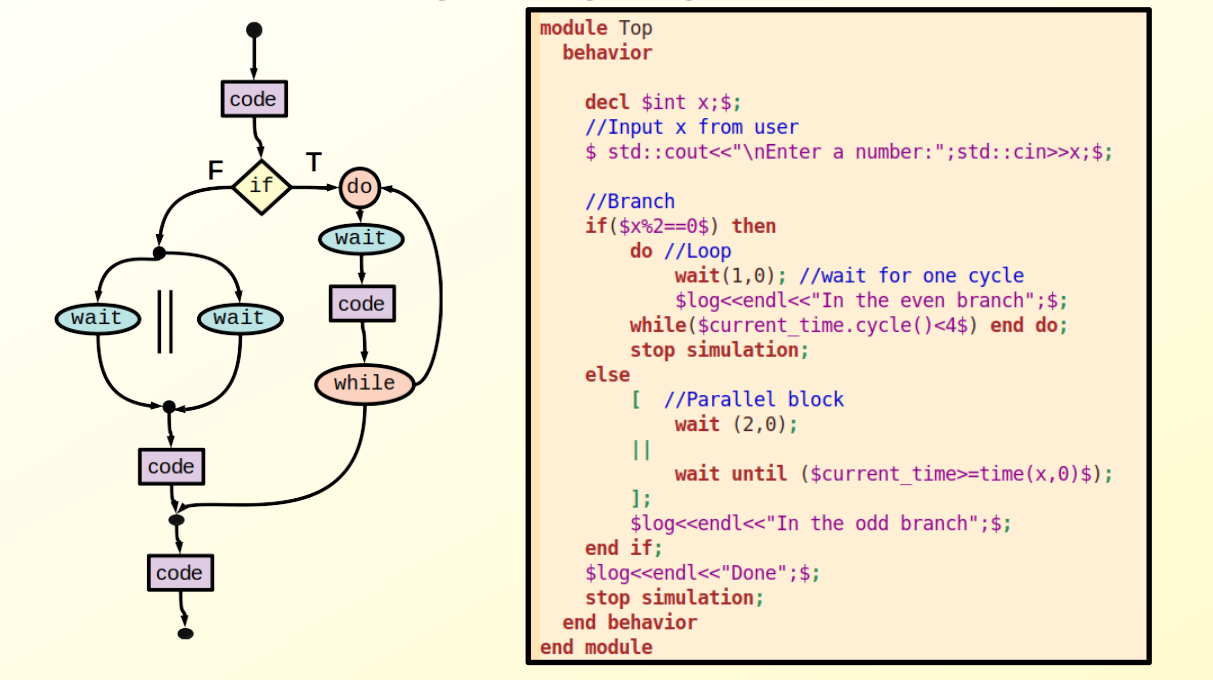

Sitar also provides a modeling language that has a rich set of constructs for describing system structure and interconnections, as well as module behavior in a sequential manner, including fork–join parallelism (using parallel blocks), wait statements, and control-flow constructs such as loops (do-while) and conditionals (if-else). Parallel blocks can be used to model concurrent components that require zero-latency interaction, grouped within a single module and executed on the same thread with a fixed, deterministic ordering. Raw C++ code can be embedded into the description in well-defined ways, within dollar symbols ( $...$ ).
Sitar provides systematic logging support, with fine-grained control per module, per output stream, and dynamically in time, based on simulation time or conditions. This is essential for writing, debugging and validating complex models, especially when performing parallel simulations.

Sitar language

Each module description is translated into highly readable C++ code as a class with the behavior translated as lightweight state-machine code implemented using a case-statement with explicit activity pointers, conceptually similar to coroutines in C++ or generator functions in Python. This design allows users to focus on system structure and behavior, while the framework manages time advancement, scheduling, and deterministic parallel execution.
The simulation kernel itself is intentionally simple and lightweight. This makes it easy to co-simulate Sitar models with external simulation environments, by advancing the Sitar model using explicit clock ticks (one per phase, i.e., two per simulation cycle).

Toolchain Overview¶

A Sitar model is written using the Sitar modeling language and processed through a simple toolchain:

The Sitar model description is translated into readable C++ code. Each module definition becomes a C++ class. The Sitar descriptions can also include or embed external C++ code.
The generated code is compiled together with the simulation kernel and the user-included/external C++ code (if any).
The resulting executable is run in serial or parallel mode.

Parallel execution is supported via OpenMP and can be enabled without modifying the model itself. Mapping of model components to execution threads can be static and specified by the modeler, or left to OpenMP's dynamic scheduler.

Publications and Slides¶

To learn more about the design and applications of Sitar, see the following resources:

SIMULTECH 2022 (Best Paper Award)
Foundational paper introducing Sitar and its parallel simulation approach.
download pdf
Winter Simulation Conference 2024
Detailed description of the execution model and performance evaluation.
download pdf
Tutorial Slides
Overview of key ideas, modeling constructs, and execution semantics.
download pdf

Reopsitory and License¶

Sitar's Github Repository: https://github.com/sitar-sim/sitar

Sitar is released under the MIT License.
See the LICENSE file in the repository for details.
